Quick Dateils Type:

Dateils products descrpition

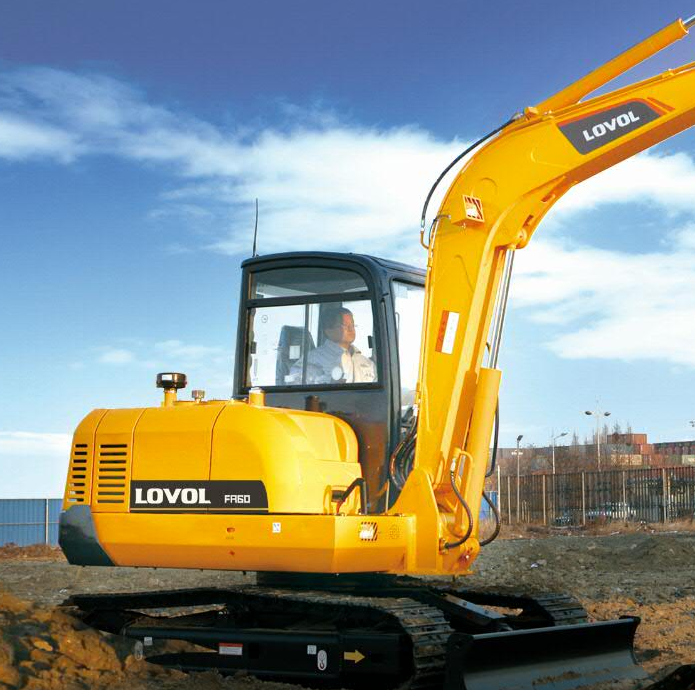

Main Features1. Variable power, low fuel consumption, and clean emissions which meet the American EPA Tier2. Standard and the European EU Standard; low vibration, low noise which will be good for the enviroment and staff. 2. Advanced hydraulic system which will make sure the working devices can be coordinated with each other during complex operation in any case. 3. Control system which is designed ergonomically will make it more comfortable to operate and more easy for the driver to get in and out. 4. Convenient maintenance. 5. Advanced hydraulic control system which will provide perfect driving manipulation. 6. Structural parts with high strength which will make sure that the digging force can be brought into play powerfully. 7. Spacious driving view, comfortable operability and ultra low noise. 8. Optimized job parameters of the working devices which will make sure the larger excavation area in case of sufficient strength. 9. Lengthened bucket rod and buckets of different capacity can be selected as the mating to adapt to different working conditions.

products descrpition


Main Parameters
Operation Weight (Standard Configuration) (KN) 5730
Standard Bucket Capacity 0.18
Transport Dimensionsmm 6010*1880*2650
Bucket Digging Force (KN) 42
Bucket Rob Digging Force (KN) 31
Maximum Traction (KN) 52.8
High-low Speed (Km/h) 4.5/3.0
Climbing Performance(°) 30
Total Length of the Crawler 2550
Tail Turning Radius (mm) 1600
Width of the Crawler 400
Ground Pressure (Kpa) 32
Turning Mechanism
Turning Speed (rpm) 10.2
Model 4TNV94L-SFN Yanmar 4TNV94L-SFN
Form Four Cylinders, Direct Injection, Naturally Aspirated, Water-cooling
Rated Power/Rotate Speed (KW/rpm) 39/2200
Rated Torque/Rotate Speed (N.m/rpm) 218/1000
Cylinder Diameter*Stroke (mm) 94*110
Output Value (L) 3.054
Fuel Consumption (g/KW.h) 235
Hydraulic System
Fuel Tank Capacity (L) 120
Main Pump Pressure (Mpa) 24.5
Main Pump Flow 135
Operating Scope
Maximum Digging Height (mm) 5330
Maximum Dumping Height (mm) 3640
Maximum Digging Depth (mm) 3935
Maximum Digging Radius (mm) 6110
